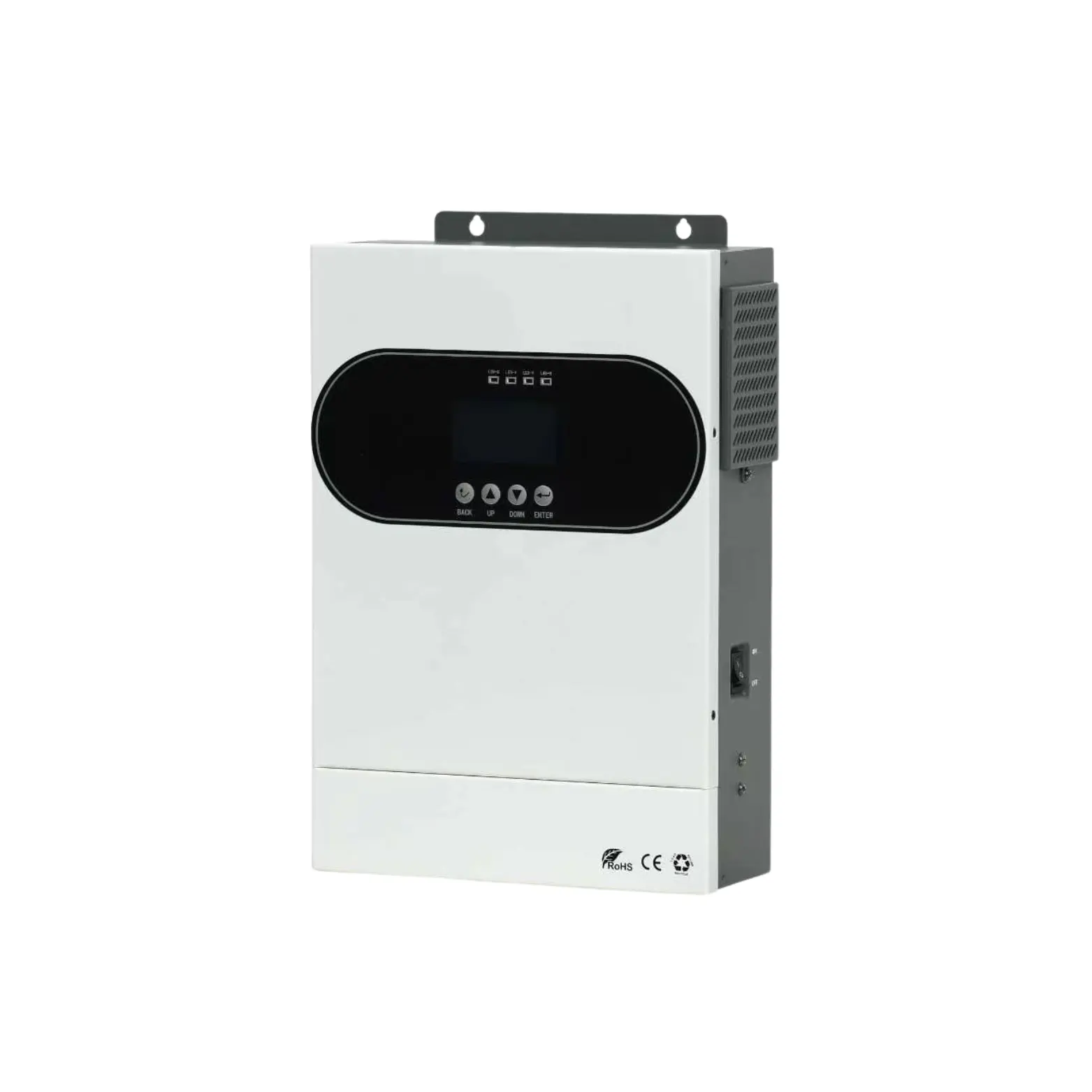

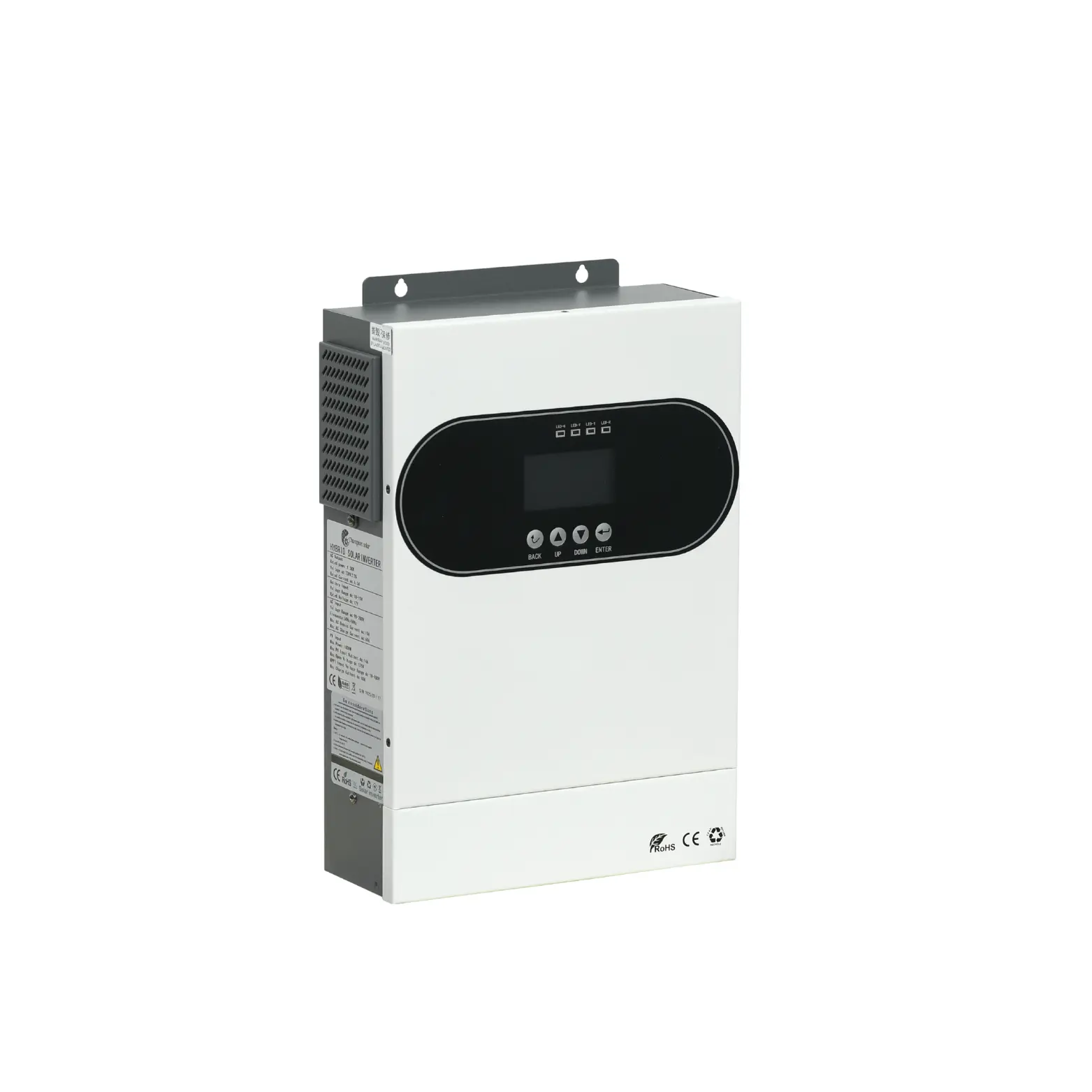

Blisbond 4KW 24V Off-Grid Hybrid Solar Inverter – Built-in MPPT, WiFi, Single-Phase 220V
Key Features
3.5KW / 4.2KW / 5.5KW / 6.2KW Rated Power
Pure Sine Wave Output
Solar & Grid Hybrid System
Intelligent CPU Control
LCD Real-Time Display
UPS Backup Function, Smart Fan Control
Compact Wall-Mounted Design
No description available.
| Battery Type | Lead Acid / Lithium Battery Compatible |
| Operation Mode | Grid / Battery / ECO |
| Battery Capacity | Constant Charging Voltage (adjustable): 28.2 VDC - 56.4 VDC F. Late Charging Voltage (Adjustable): 27 VDC-54 VDC |
| Rated AC Output Power | 3.5KW / 4.2KW / 5.5KW / 6.2KW |
| PV Charging | PV Charging Mode: MPPT MAX.PV Input Power: 5000W-5500W MPPT Tracking Range: 40~450 VDC-120~430 VDC MAX, PV Input Voltage: 500 VDC MAX. PV Charging Current: 80A-100A MAX. AC Charging Current: 80A-100A MAX. Charging Current: 80A-100A |
| Maximum Efficiency | Peak Efficiency (battery mode): >94% |
| Protection | Overload Protection, Short Circuit Protection, Over Temperature Protection LCD Real-Time Monitoring |
| Output Mode | Appliance Mode / UPS Mode |
| Output Standard | L+N+PE |
| Output Voltage | 208/220/230/240 VAC ± 5% |
| Output Frequency | 50/60 Hz ± 0.1% |
| Output WaveForm | Pure Sine Wave |
| Switching Time | Computer equipment: 10 ms Household appliances: 10ms |
| Peak Power | 10000 VA |
| OverLoad Ability | Battery Mode : 1 min @ 102 % ~1106 Load 105@110 %~130 % Load 35@130 %~150 % Load 200 ms @> 150 % Load |
| Input Sources | L+N+PE |
| Rated Input Voltage | 208/220/230/240 VAC |
| Charging Type | Utility Charging / Solar Charging |
| Voltage Range | 170~280 VAC (computer equipment) 90~280 VAC (household appliances) |
| Frequncy | 50/60Hz(Auto Adaptive) |
| Operating Temperature | 0~40°C |
| Storage Temperature | -15~60°C |
| Humidity | 20%-95% (Non-condensing) |
| Altitude | Altitude Not Over 1000 m, Max 4000 m. Refer to IEC62040 |
| Noise | <50 dB |
| Dimensions | Product Size: 456x300x131 mm Package Size: 510x370x195 mm |
| Weight | 9 kg |
| Application | Residential Solar System Home Energy Backup Off-Grid Power Supply Communication & Monitoring Systems Remote Solar Applications |
| RS232 | 5PIN/Pitch 2.0 mm Baud Rate Rate 2400 |
| Communication Port | 2*5 PIN/Pitch 2.54 mm Lithium Battery BMs Communication Card WifiCaontact（assorting） |
| Perallel connect Interface | Without Parallel Connect, With Parallel |
| Warranty | 1 year |
