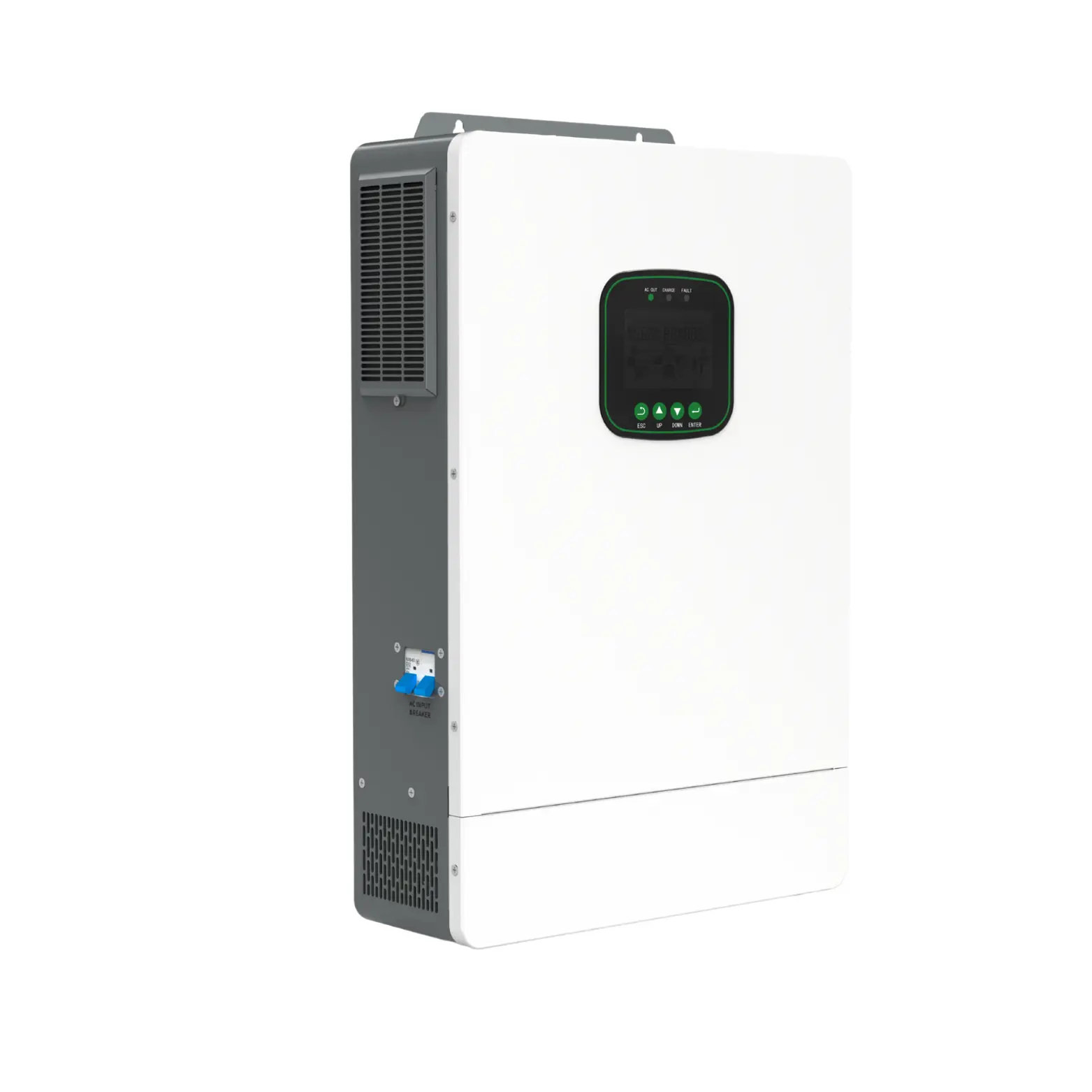

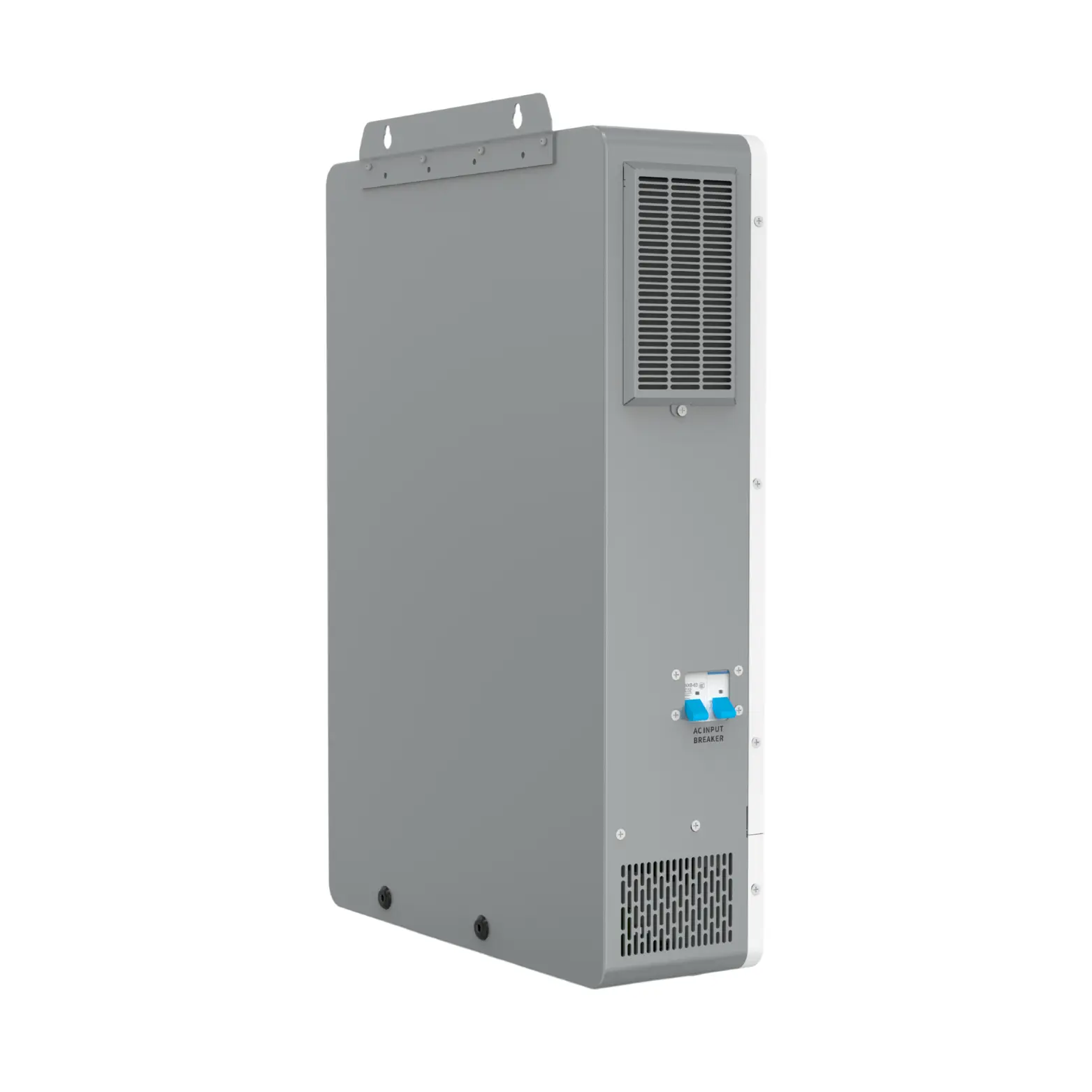

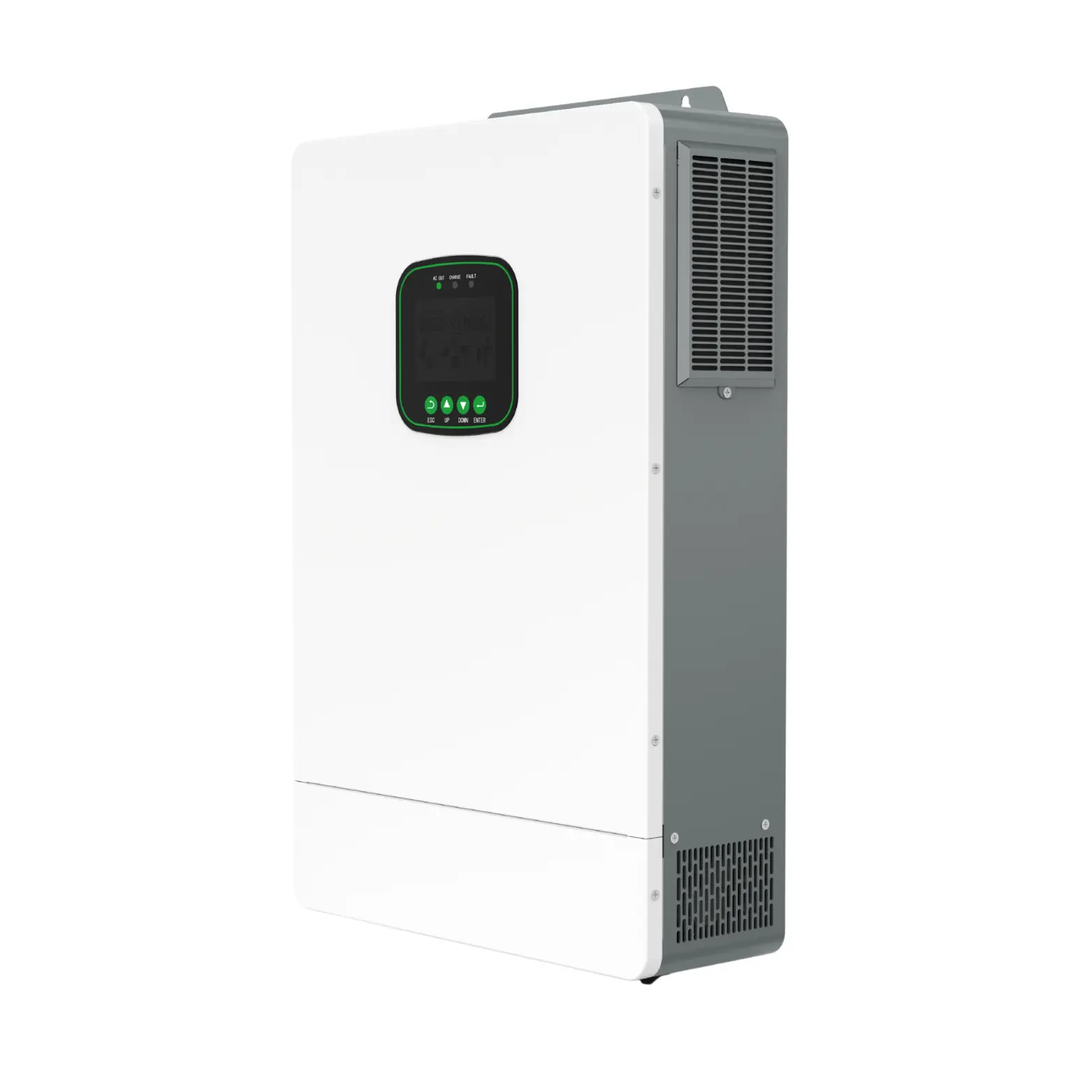

Blisbond 6KW 48V Off-Grid Hybrid Solar Inverter – Built-in MPPT, Parallel-Ready, WiFi, Single-Phase 220V
Regular Price:
Status:
SKU:
Code:
HI006
Brand:
Blisbond
Key Features
5.6KW-12KW Parallel Energy Solution, Sine Wave Output
99.9% MPPT Efficiency; 48V Battery System
5.6KW-12KW Parallel Energy Solution, Sine Wave Output
99.9% MPPT Efficiency; 48V Battery System
Hybrid Solar + Battery + Grid Management
Up to 500V PV Input
WiFi & RS485 Monitoring
UPS Backup Power
Parallel Operation Support; Intelligent Cooling
For dealer & bulk pricing, please contact us.
No description available.
General Information
| Battery Type | Lead Acid & Lithium Battery |
| Battery Capacity | Rated Battery Input Voltage: 51.2V (Minimum Starting Voltage 44V) Battery Voltage Range: 40.0 VDC-60 VDC ± 0.6 VDC |
| Rated AC Output Power | 5.6KW / 6.2KW / 8KW / 11KW / 12KW |
| Chargeing Methods | Solar / Grid / Hybrid |
| PV Charging | PV Charging Mode: MPPT Maximum PV Open Circuit Voltage: 500 VDC PV Operating Voltage Range: 120 VDC-500 VDC MPPT Voltage Range: 90 VDC-450 VDC Battery Voltage Range: 40-60 VDC Maximum Input Power: 6000W Maximum PV Input Current: 27A PV Charging Current Range (can be set): 0-100A Charging Circuit Protection: Blown fuse Writing Protection: Reverse Polarity Protection |
| Maximum Efficiency | Peak Efficiency (battery mode): >94% |
| Protection | Overload Protection, Short Circuit Protection, Over Temperature Protection LCD Real-Time Monitoring |
Output
| Output Mode | Grid-Tied + Backup Output |
| Output Voltage | 230 VAC |
| Output Frequency | 50 Hz ± 0.3 Hz / 60 Hz ± 0.3 Hz |
| Output WaveForm | Pure Sine Wave |
| Peak Power | 6200VA / 6200W |
| OverLoad Ability | (102% < load < 125%) ±10%: report error and turn off the output after 5 minutes; (125% < load < 150%) ± 10%: report error and turn off the output after 10 seconds; Load >150% ±10%: report error and turn off the output after 5 seconds; |
| Others | Loaded Motor Capability: 4 HP Output Short Circuit Protection: 200 ms Protection Bypass Circuit Breaker Specification: 40A Power Saving Mode Self-Consumption: Load ≤25W Enters Power-Saving Mode |
Input (Charging)
| Rated Input Voltage | 220/230 VaC |
| Voltage Range | 170~280 VAC ±2% (UPS Model) 90~280 VAC ±2% (APL Model) |
| Frequncy | 50/60 Hz (Auto Detection) |
| Others | Overload Short-Circuit Protection: Circuit Breaker Conversion Time (Bypass and Inverter): 10 ms (typ) AC Reverse Protection: Yes Maximum Bypass Overload Current: 40A |
Environment
| Operating Temperature | -10°C to 55°C (>45°C Reduced Operation) |
| Storage Temperature | -25°C to 60°C |
| Humidity | 5%-95% (Conformal Coating Protection) |
| Noise | ≤60 dB |
| Heat Dissipation | Forced Air Cooling. Variable Speed of Fan |
Physical Specification
| Dimensions | Product Size: 428x280x110 mm |
| Weight | 8.2 kg |
| Application | Residential Solar System Home Energy Backup Off-Grid Power Supply Communication & Monitoring Systems Remote Solar Applications |
| Others | Certification: CE (IEC62109-1,2) EMC Certification Level: EN61000, C2 |
Connectivity

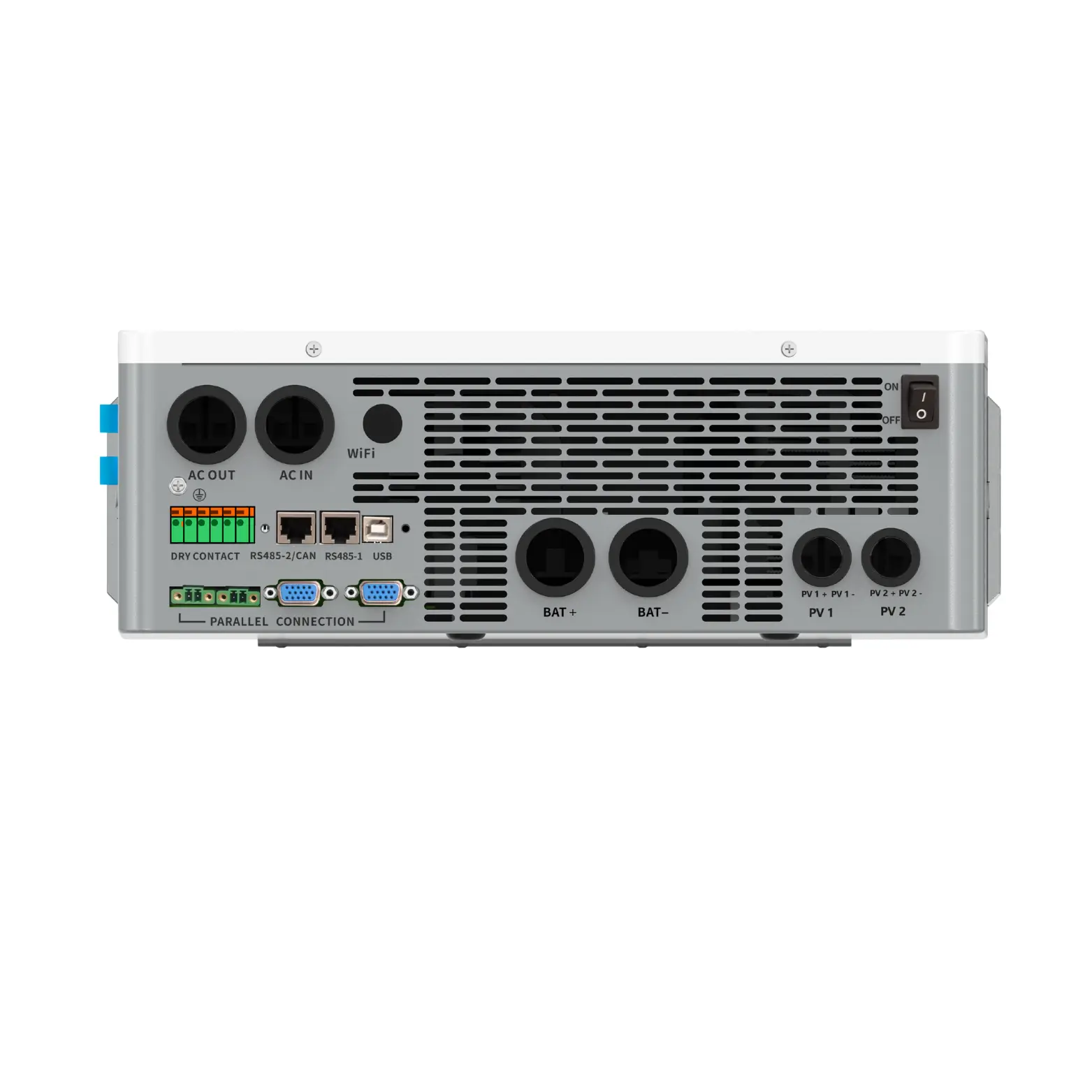

| Communication Port | USB/RS485/(WiFi/GPRS)/Dey Node Control |
| Perallel connect Interface | Without Parallel Connect, With Parallel |
Warranty
| Warranty | 3 years |
