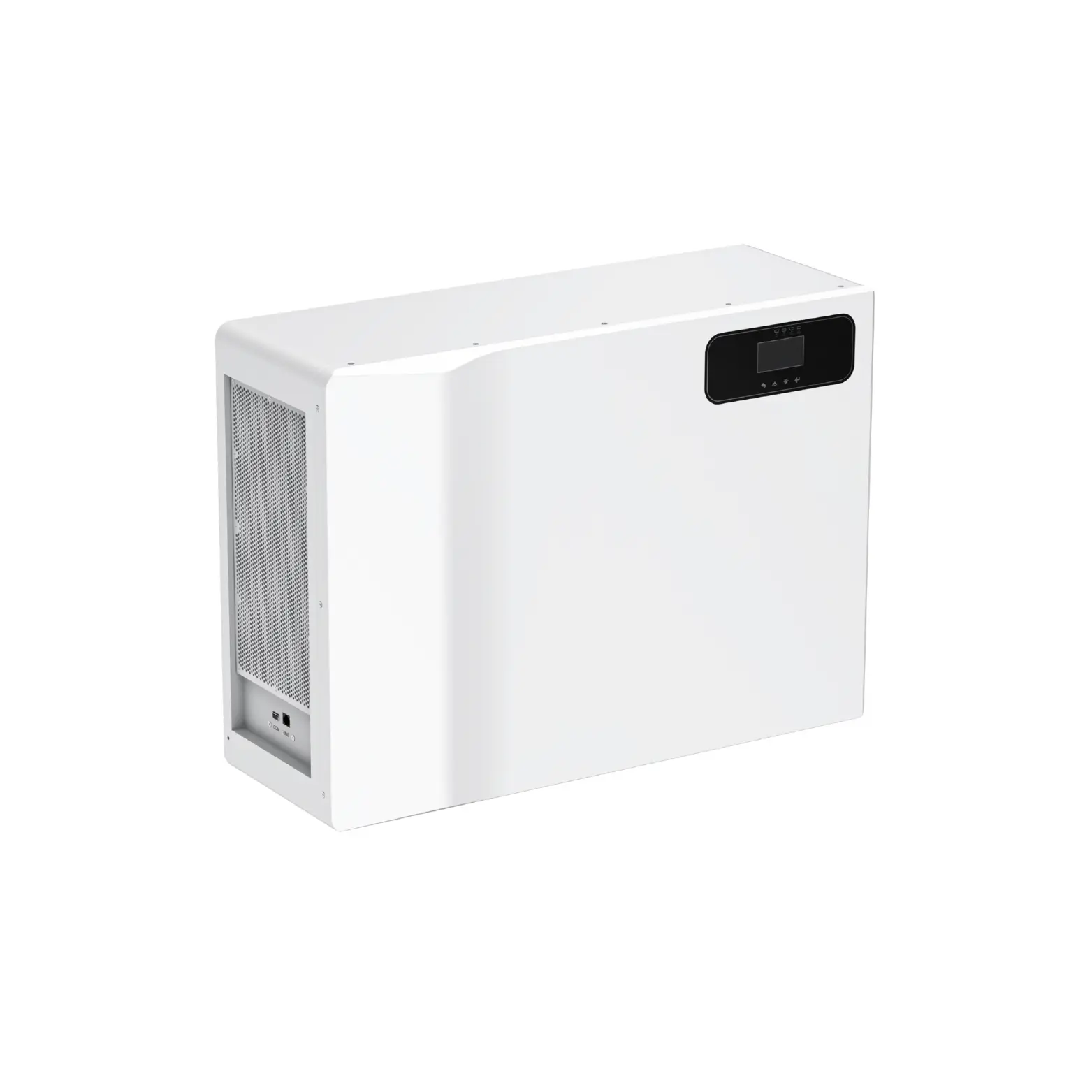

Blisbond Apollo C Series 15kWh 5.5kW All-in-One Solar Energy Storage System – 15° Design, WiFi
Regular Price:
Status:
SKU:
Code:
SCAPA5515
Brand:
Blisbond
Key Features
LiFePO₄ Battery
6 kW Rated Power
15 kWh Capacity Range
Hybrid Inverter Integrated
Modular Expandable Design
≥8000 Cycles Long Life
95% Depth of Discharge
Smart LCD Display
CAN / RS485 / USB Communication
For dealer & bulk pricing, please contact us.
No description available.
General Information
| Model | SCAP-A-51.2V-300AH |
| System Type | All-in-One ESS with Hybrid Inverter |
| Battery Type | LiFePO₄ Battery |
| Battery Capacity | 15 kWh |
| Rated AC Output Power | 6kW |
| Battery Cycle Life | ≥8000 Cycles |
| Maximum Efficiency | >98% |
| PV Charging | Max Voltage: 500V Optimum Voltage: 300-400V Voltage Range: 80V-500VDC Max Power: 27A/9000W |
Input (Charging)
| Rated Input Voltage | 230VAC |
| Voltage Range | 90-280 VAC |
| Frequncy | Rated Frequency: 50/60 Hz Frequency Range: 40-70Hz |
| Others | Rated Current: 60A Max AC Current: 120A |
Output
| Output WaveForm | Pure Sinusoidal Wave |
| Switching Time | 10 ms |
| Output Frequency | 50/60Hz |
| Others | Battery Overvoltage: 58.4V Battery Undervoltage Charge: 45V Constant Voltage Charge: 58.4V Float Voltage: 56V Max Charging Current: 120A |
Connectivity
| Communication Port | USB (Inverter) RS485 (BMS) CAN Communication |
Physical Specification
| Dimensions | Product Dimension: Inverter: 70x26x51 cm Battery: 70x26x51 cm Carton Size: Inverter: 75.8x56.3x31.6 cm Battery: 75.8x61.5x43 cm |
| Weight | Net Weight: Inverter: 23.9 kg Battery: 112.15 kg Gross Weight: Inverter: 26.6 kg Battery: 129.9 kg |
| Accessories | Storage Battery x1 Inverter x1 AC & GND Pin x6 MC4 Connector x2 MC4 pin x2 AC Aviation Plug Universal Wheel DC Fuse |
| Application | Residential Solar Energy Storage Solar PV Systems Home Energy Backup Smart Energy Storage |
Environment
| Charging Temperature | 0°C to 50°C |
| Discharge Temperature | -20°C to 60°C |
| Storage Temperature | -20°C–60°C |
Warranty
| Warranty | 5 years |
