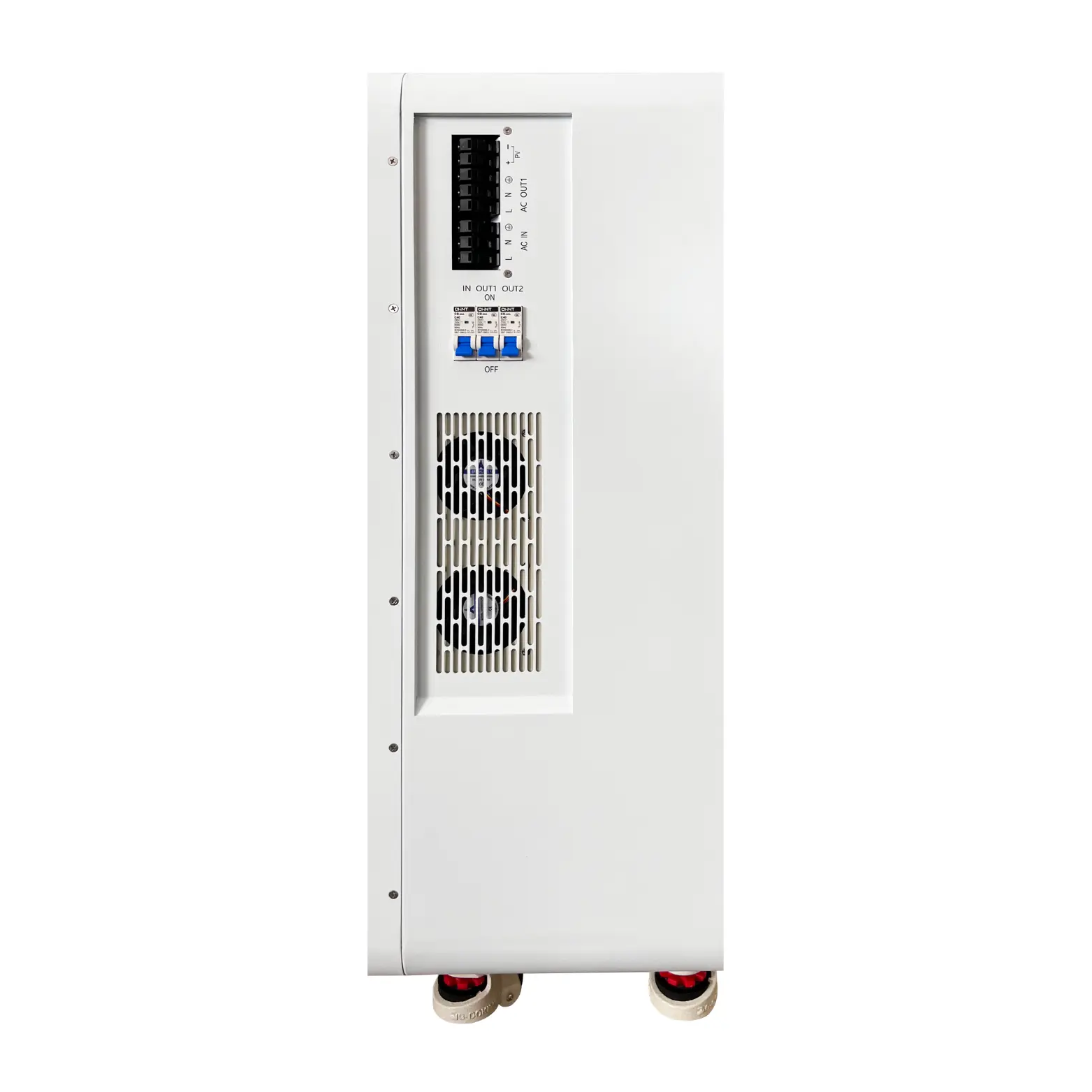

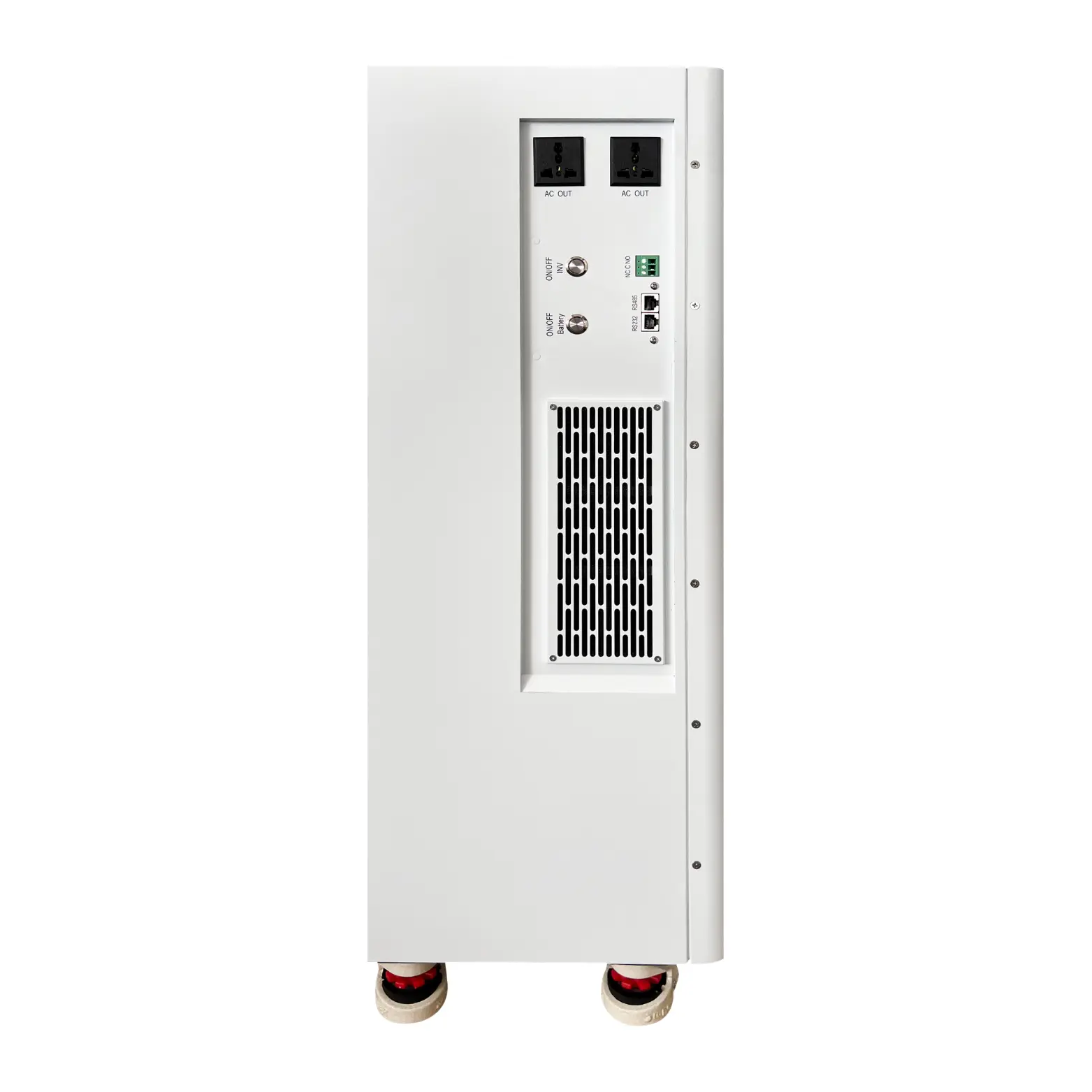

Blisbond Ares All-in-One Solar Energy Storage System – 10kWh Battery, 5.5kW Inverter & WiFi
Regular Price:
Status:
SKU:
Code:
ARES5510
Brand:
Blisbond
Key Features
LiFePO₄ Battery; ≥6000 Cycles
5.5 kW Inverter Power; 10 kWh Energy Capacity
All-in-One Energy Storage System; ≥98% Efficiency
230VAC Output; 120-500VDC PV Input
RS485 & WiFi Communication
IP54 Protection
RS485 & WiFi Communication
IP54 Protection
For dealer & bulk pricing, please contact us.
No description available.
General Information
| Model | ARES-10 kWh + 5.5 kW |
| System Type | All-in-One ESS with Hybrid Inverter |
| Battery Type | LiFePO₄ Battery |
| Battery Capacity | 10 kWh |
| Rated AC Output Power | 5.5kW |
| Battery Cycle Life | ≥6000 Cycles |
| Maximum Efficiency | >98% |
| PV Charging | Max Voltage: 500V Optimum Voltage: 300-400V Voltage Range: 80V-500VDC Max Power: 5500W |
Input (Charging)
| Rated Input Voltage | 230VAC |
| Voltage Range | 90-280 VAC |
| Frequncy | Rated Frequency: 50/60 Hz Frequency Range: 40-70Hz |
| Others | Rated Current: 30A Max AC Current: 60A |
Output
| Output WaveForm | Pure Sinusoidal Wave |
| Switching Time | 10 ms |
| Output Frequency | 50Hz |
| Others | Battery Overvoltage: 58.4V Battery Undervoltage Charge: 45V Constant Voltage Charge: 58.4V Float Voltage: 56V Max Charging Current: 100A |
Connectivity
| Communication Port | RS232 (Inverter) RS485 (BMS) CAN Communication |
Physical Specification
| Dimensions | Product Dimension: Battery: 48x84x30 cm Carton Size: Inverter + Battery: 90x53x46.7 cm |
| Weight | Net Weight: Inverter + Battery: 99.7 kg Gross Weight: Inverter + Battery: 114 kg |
| Accessories | DC Fuse |
| Application | Residential Energy Storage Backup Power Supply Off-grid Energy Solution Small Commercial ESS |
Environment
| Charging Temperature | 0°C to 50°C |
| Discharge Temperature | -20°C to 60°C |
| Storage Temperature | -20°C–60°C |
Warranty
| Warranty | 5 years |
